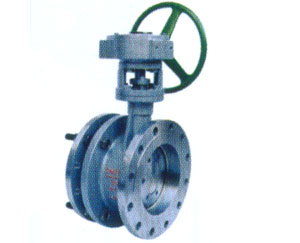

| 伸缩型蝶阀 |
一、主要尺寸
|
规格 |
D1 |
D2 |
D |
Lmax |
Lmin |
H1 |
H2 |
Z-φd |
|
100 |
180 |
155 |
215 |
216 |
174 |
110 |
170 |
8-φ18 |
|
125 |
210 |
185 |
245 |
232 |
186 |
123 |
185 |
8-φ18 |
|
150 |
240 |
210 |
280 |
239 |
194 |
140 |
210 |
8-φ23 |
|
200 |
295 |
265 |
335 |
264 |
214 |
170 |
238 |
8-φ23 |
|
250 |
350 |
320 |
390 |
296 |
235 |
195 |
270 |
12-φ23 |
|
300 |
400 |
368 |
440 |
300 |
250 |
222 |
300 |
12-φ23 |
|
350 |
460 |
428 |
500 |
320 |
270 |
252 |
330 |
16-φ23 |
|
400 |
515 |
482 |
565 |
332 |
282 |
285 |
368 |
16-φ25 |
|
450 |
565 |
532 |
615 |
355 |
305 |
310 |
402 |
20-φ25 |
|
500 |
620 |
585 |
670 |
365 |
315 |
337 |
438 |
20-φ25 |
|
600 |
725 |
685 |
780 |
420 |
370 |
393 |
490 |
20-φ30 |
|
700 |
840 |
800 |
895 |
446 |
396 |
450 |
558 |
24-φ30 |
|
800 |
950 |
905 |
1010 |
476 |
426 |
515 |
625 |
24-φ34 |
|
900 |
1050 |
1005 |
1110 |
506 |
456 |
560 |
685 |
28-φ34 |
|
1000 |
1160 |
1115 |
1220 |
516 |
466 |
610 |
750 |
28-φ34 |
|
1200 |
1380 |
1325 |
1450 |
560 |
510 |
725 |
880 |
32-φ41 |
|
1400 |
1590 |
1525 |
1675 |
590 |
540 |
840 |
987 |
36-φ48 |
|
1600 |
1820 |
1750 |
1915 |
630 |
585 |
960 |
1158 |
40-φ54 |
|
1800 |
2020 |
1950 |
2115 |
680 |
630 |
1060 |
1258 |
44-φ54 |
|
2000 |
2230 |
2160 |
2325 |
730 |
680 |
1165 |
1365 |
48-φ54 |
|
| |
|
