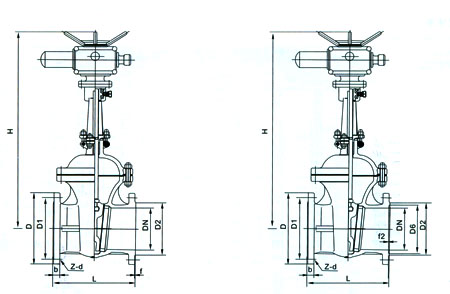

◆主要尺寸表
|
公称通径 DN(mm) |
主要外形尺寸和连接尺寸 (mm) |
电动装置型号 |
|
L |
D |
D1 |
D2 |
b |
f |
z-d |
H |
|
Z940H/Z941-16C Z940H/Z941-16P Z940H/Z941-16R Z940H/Z941-16P Z940H/Z941-16R Z940H/Z941-16I |
|
50 |
250 |
160 |
125 |
100 |
16 |
3 |
4-18 |
615 |
DZW15 |
|
65 |
265 |
180 |
145 |
120 |
18 |
3 |
4-18 |
630 |
DZW20 |
|
80 |
280 |
195 |
160 |
135 |
20 |
3 |
8-18 |
710 |
DZW20 |
|
100 |
300 |
215 |
180 |
155 |
20 |
3 |
8-18 |
740 |
DZW20 |
|
125 |
325 |
245 |
210 |
185 |
22 |
3 |
8-18 |
820 |
DZW20 |
|
150 |
350 |
280 |
240 |
210 |
24 |
3 |
8-23 |
907 |
DZW30 |
|
200 |
400 |
335 |
295 |
265 |
26 |
3 |
12-23 |
1100 |
DZW30 |
|
250 |
450 |
405 |
355 |
320 |
30 |
3 |
12-25 |
1200 |
DZW45 |
|
300 |
500 |
460 |
410 |
375 |
30 |
3 |
12-25 |
1540 |
DZW60 |
|
350 |
550 |
520 |
470 |
435 |
34 |
4 |
16-25 |
1700 |
DZW60 |
|
400 |
600 |
580 |
525 |
485 |
36 |
4 |
16-30 |
1933 |
DZW90 |
|
450 |
650 |
640 |
585 |
545 |
40 |
4 |
20-30 |
2160 |
DZW90 |
|
500 |
700 |
705 |
650 |
608 |
44 |
4 |
20-34 |
2240 |
DZW120 |
|
600 |
800 |
840 |
770 |
718 |
48 |
5 |
20-41 |
2432 |
DZW180 |
|
700 |
900 |
910 |
840 |
788 |
50 |
5 |
24-41 |
2489 |
DZW250 |
|
800 |
1000 |
1020 |
950 |
898 |
52 |
5 |
24-41 |
2643 |
DZW350 |
注:DN700 、DN800 的型号为 Z942 型
