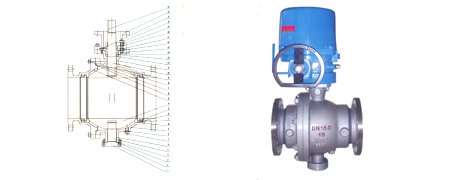

号 NO |
材料标准/
零件名称 |
材料牌号 |
|
碳钢 |
不锈钢 |
|
GB |
ASTM |
GB |
ASTM |
|
01 |
底盖 |
25 |
A105 |
1Cr18Ni9Ti
1Cr18Ni12Mo2Ti |
F304/F316/
F304L/F316L |
|
02 |
底盖螺钉 |
25CrMoA |
A193-B7 |
1Cr17Ni2 |
A193-B8M |
|
03 |
垫圈 |
金属夹石墨 |
|
04 |
止推轴承 |
金属夹 |
|
05 |
下阀杆 |
2Cr13 |
A276-410 |
1Cr18Ni9Ti
1Cr18Ni12Mo2Ti |
F304/F316/
F304L/F316L |
|
06 |
下阀杆轴承 |
金属夹 |
|
07 |
垫圈 |
金属夹石墨 |
|
08 |
排污塞 |
2Cr13 |
A276-410 |
1Cr18Ni9Ti
1Cr18Ni12Mo2Ti |
F304/F316/
F304L/F316L |
|
09 |
阀体 |
WCB |
A216-WCB |
ZG1Cr18Ni9Ti
ZG1Cr18Ni12Mo2Ti |
CF8/CF8M/
CF3/CF3M |
|
10 |
阀座 |
2Cr13
渗氮 |
A276-410
渗氮 |
1Cr18Ni9Ti
1Cr18Ni12Mo2Ti
渗氮 |
F304/F316/
F304L/F316L
渗氮 |
|
11 |
阀座密封圈 |
石墨 |
石墨 |
石墨 |
石墨 |
|
12 |
阀座支承圈 |
2Cr13 |
A276-40 |
1Cr18Ni9Ti
1Cr18Ni12Mo2Ti |
F304/F316/
F304L/F316L |
|
13 |
阀座弹簧 |
17-7PH |
17-7PH |
17-7PH |
17-7PH |
|
14 |
球体 |
2Cr13
渗氮 |
A276-410
渗氮 |
1Cr18Ni9Ti
1Cr18Ni12Mo2Ti
渗氮 |
F304/F316/
F304L/F316L
渗氮 |
|
15 |
阀盖 |
WCB |
A216-WCB |
ZG1Cr18Ni9Ti
ZG1Cr18Ni12Mo2Ti |
CF8/CF8M/
CF3/CF3M |
|
16 |
垫圈 |
金属夹石墨 |
|
17 |
螺母 |
45 |
A194-H2 |
0Cr18Ni9 |
A194-8M |
|
18 |
双头螺柱 |
35CrMoA |
A193-B7 |
1Cr17Ni2 |
A193-B8M |
|
19 |
球体键 |
40Cr |
40Cr |
1Cr17Ni2 |
1Cr17Ni2 |
|
20 |
上阀杆 |
2Cr13 |
A276-40 |
1Cr18Ni9Ti
1Cr18Ni12Mo2Ti |
F304/F316/
F304L/F316L |
|
21 |
阀杆O形圈 |
氟橡胶 |
氟橡胶 |
氟橡胶 |
氟橡胶 |
|
22 |
填料函O形圈 |
氟橡胶 |
氟橡胶 |
氟橡胶 |
氟橡胶 |
|
23 |
上阀杆轴承 |
金属夹PTFE |
金属夹PTFE |
金属夹PTFE |
金属夹PTFE |
|
24 |
止推轴承 |
石墨 |
石墨 |
石墨 |
石墨 |
|
25 |
阀杆填料函 |
25镀铬 |
A105镀铬 |
1Cr18Ni9Ti
1Cr18Ni12Mo2Ti |
F304/F316/
F304L/F316L |
|
26 |
阀杆填料 |
石墨 |
|
27 |
填料压盖 |
WCB |
A216-WCB |
ZG1Cr18Ni9Ti
ZG1Cr18Ni12Mo2Ti |
CF8/CF8M/
CF3/CF3M |
|
28 |
螺母 |
45 |
A194-2H |
0Cr18Ni |
A194-8M |
|
29 |
双头螺柱 |
35CrMoA |
A193-B7 |
1Cr17Ni2 |
A193-B8M |
|
30 |
螺钉 |
35CrMoA |
A193-B7 |
1Cr17Ni2 |
A193-B8M |
|
31 |
支架 |
WCB |
WCB |
WCB |
WCB |
|
32 |
键 |
40Cr |
40Cr |
1Cr17Ni2
|
1Cr17Ni2 |

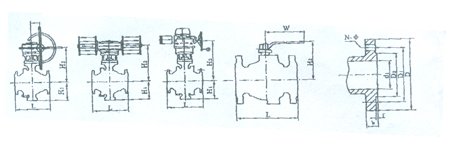

一、Q47型球阀尺寸表
GB规格器：结构长度：GB 12221-89
连接法兰：JB/T79-94
对焊连接：GB 12224-89
|
PNl6(1.6MPA) |
|
DN |
d |
L |
D |
D1 |
D12 |
b |
f |
n-do |
H |
W |
|
50 |
50 |
216 |
160 |
125 |
100 |
16 |
3 |
4-18 |
107 |
230 |
|
65 |
65 |
241 |
180 |
145 |
120 |
18 |
3 |
4-18 |
142 |
400 |
|
80 |
80 |
283 |
195 |
160 |
135 |
20 |
3 |
8-18 |
152 |
400 |
|
100 |
100 |
305 |
215 |
180 |
155 |
22 |
3 |
3-18 |
178 |
700 |
|
125 |
125 |
356 |
245 |
210 |
185 |
22 |
3 |
8-18 |
2S2 |
1000 |
|
150 |
150 |
394 |
230 |
240 |
210 |
24 |
3 |
8-23 |
272 |
1200 |
|
200 |
200 |
457 |
33S |
295 |
265 |
26 |
3 |
12-23 |
398 |
1500 |
|
250 |
250 |
533 |
405 |
355 |
320 |
30 |
3 |
12-2S |
495 |
|
|
300 |
300 |
610 |
460 |
410 |
375 |
30 |
4 |
12-25 |
580 |
|
|
350 |
3SO |
686 |
520 |
470 |
435 |
34 |
4 |
16-25 |
625 |
|
|
400 |
400 |
762 |
580 |
525 |
485 |
36 |
4 |
16-30 |
720 |
|
|
500 |
500 |
914 |
705 |
650 |
608 |
44 |
4 |
20-34 |
840 |
|
|
600 |
600 |
1067 |
340 |
770 |
718 |
48 |
5 |
20-41 |
1050 |
|
|
700 |
700 |
1245 |
910 |
840 |
788 |
50 |
5 |
24-41 |
1150 |
|
|
800 |
300 |
1372 |
1020 |
950 |
893 |
52 |
5 |
24-41 |
1220 |
|
|
PN25(2.5MPA) |
|
50 |
50 |
216 |
160 |
125 |
100 |
20 |
3 |
4-18 |
107 |
230 |
|
65 |
6S |
24l |
180 |
145 |
120 |
22 |
3 |
8-13 |
142 |
400 |
|
80 |
80 |
2g3 |
195 |
160 |
13S |
22 |
3 |
8-18 |
152 |
400 |
|
100 |
100 |
305 |
230 |
190 |
160 |
24 |
3 |
8-23 |
178 |
700 |
|
125 |
125 |
38l |
270 |
220 |
188 |
28 |
3 |
8-25 |
252 |
1000 |
|
150 |
150 |
403 |
300 |
250 |
218 |
30 |
3 |
8-25 |
272 |
1200 |
|
200 |
200 |
502 |
360 |
310 |
273 |
34 |
3 |
12-25 |
398 |
|
|
250 |
250 |
563 |
425 |
370 |
332 |
36 |
3 |
12-30 |
495 |
|
|
300 |
300 |
648 |
485 |
430 |
390 |
40 |
4 |
16-30 |
580 |
|
|
350 |
350 |
762 |
550 |
490 |
448 |
44 |
4 |
16-34 |
625 |
|
|
400 |
400 |
838 |
610 |
550 |
505 |
48 |
4 |
16-34 |
720 |
|
|
500 |
500 |
991 |
660 |
600 |
610 |
52 |
4 |
20-41 |
840 |
|
|
600 |
600 |
1143 |
840 |
770 |
718 |
56 |
5 |
20-41 |
1050 |
|
|
700 |
700 |
1346 |
955 |
375 |
815 |
60 |
5 |
24-48 |
1150 |
|
|
300 |
800 |
1524 |
1070 |
990 |
930 |
64 |
5 |
24-48 |
1220 |
|
GB规格器：结构长度GB 12221-89
连接法兰：JB/T79～94
对焊连接：GB 1224-89
|
PN40(4.0MPa) |
|
DN |
d |
L |
D |
D1 |
D2 |
b |
f |
n-do |
H |
W |
n |
D6 |
|
SO |
50 |
216 |
160 |
125 |
100 |
20 |
3 |
4-18 |
107 |
230 |
4 |
38 |
|
65 |
65 |
241 |
180 |
145 |
120 |
22 |
3 |
8-18 |
142 |
400 |
4 |
110 |
|
80 |
80 |
283 |
195 |
160 |
135 |
22 |
3 |
8-23 |
152 |
400 |
4 |
121 |
|
100 |
100 |
305 |
230 |
190 |
160 |
24 |
3 |
8-25 |
178 |
700 |
4-5 |
150 |
|
125 |
125 |
3SI |
270 |
220 |
188 |
28 |
3 |
8-25 |
252 |
1200 |
4-5 |
176 |
|
150 |
150 |
403 |
300 |
250 |
218 |
30 |
3 |
8-25 |
272 |
1500 |
4-5 |
204 |
|
200 |
200 |
502 |
375 |
320 |
282 |
38 |
3 |
12-30 |
398 |
|
4-5 |
260 |
|
250 |
250 |
568 |
445 |
385 |
345 |
42 |
3 |
12-34 |
495 |
|
4-5 |
313 |
|
300 |
300 |
648 |
510 |
450 |
408 |
46 |
4 |
16-34 |
580 |
|
4-5 |
364 |
|
350 |
350 |
762 |
570 |
510 |
465 |
52 |
4 |
16-34 |
625 |
|
5 |
422 |
|
400 |
400 |
838 |
655 |
585 |
535 |
58 |
4 |
16-41 |
720 |
|
5 |
474 |
|
500 |
500 |
991 |
755 |
670 |
612 |
62 |
4 |
20-48 |
840 |
|
5 |
576 |
|
600 |
600 |
1143 |
890 |
795 |
730 |
62 |
5 |
20-54 |
1050 |
|
6 |
678 |
|
700 |
700 |
1346 |
995 |
900 |
835 |
68 |
5 |
24-54 |
1150 |
|
6 |
768 |
|
PN63(3.6MPa) |
|
50 |
50 |
292 |
175 |
135 |
105 |
26 |
3 |
4-23 |
107 |
230 |
4 |
88 |
|
65 |
65 |
330 |
200 |
160 |
130 |
28 |
3 |
8-23 |
142 |
400 |
4 |
110 |
|
80 |
80 |
356 |
210 |
170 |
140 |
30 |
3 |
8-23 |
152 |
400 |
4 |
121 |
|
100 |
100 |
406 |
250 |
200 |
168 |
32 |
3 |
8-25 |
178 |
700 |
4-5 |
150 |
|
150 |
150 |
495 |
340 |
280 |
240 |
38 |
3 |
8-34 |
272 |
1200 |
4-5 |
204 |
|
200 |
200 |
597 |
405 |
345 |
300 |
44 |
3 |
12-34 |
398 |
1500 |
4-5 |
260 |
|
250 |
250 |
673 |
470 |
400 |
352 |
48 |
3 |
12-41 |
495 |
|
4-5 |
313 |
|
300 |
300 |
762 |
530 |
460 |
412 |
54 |
4 |
16-41 |
580 |
|
4-5 |
364 |
|
350 |
350 |
825 |
595 |
525 |
47S |
60 |
4 |
16-41 |
625 |
|
5 |
422 |
|
400 |
400 |
902 |
670 |
585 |
525 |
66 |
4 |
16-48 |
720 |
|
5 |
474 |
|
500 |
500 |
1052 |
800 |
705 |
640 |
70 |
4 |
20-54 |
840 |
|
5 |
576 |
|
600 |
600 |
1232 |
930 |
820 |
750 |
76 |
5 |
20-58 |
1050 |
|
6 |
678 |
|
700 |
700 |
1397 |
对焊连接 |
1150 |
|
|
|
|
PN100(10.0MPa) |
|
50 |
50 |
292 |
195 |
145 |
112 |
23 |
3 |
4-25 |
107 |
230 |
4 |
|
|
65 |
65 |
330 |
220 |
170 |
138 |
32 |
3 |
8-25 |
142 |
400 |
4 |
|
|
80 |
80 |
356 |
230 |
180 |
148 |
34 |
3 |
8-25 |
152 |
400 |
4 |
|
|
100 |
100 |
432 |
265 |
210 |
172 |
3B |
3 |
8-30 |
178 |
700 |
4-5 |
|
|
125 |
125 |
508 |
310 |
250 |
210 |
42 |
3 |
8-34 |
252 |
1200 |
4-5 |
|
|
150 |
150 |
5S9 |
350 |
290 |
2SO |
46 |
3 |
12-34 |
212 |
1500 |
4-5 |
|
|
200 |
200 |
660 |
430 |
360 |
312 |
54 |
3 |
12-41 |
398 |
|
4-5 |
|
|
250 |
250 |
787 |
500 |
430 |
382 |
60 |
3 |
12-41 |
495 |
|
4-5 |
|
|
300 |
300 |
838 |
585 |
500 |
442 |
70 |
4 |
16-48 |
580 |
|
4-5 |
|
|
350 |
350 |
889 |
655 |
560 |
498 |
76 |
4 |
16-54 |
625 |
|
5 |
|
|
400 |
400 |
991 |
715 |
620 |
553 |
80 |
4 |
16-54 |
720 |
|
5 |
|
|
500 |
500 |
1194 |
对焊连接 |
840 |
|
|
|
600 |
600 |
1397 |
1050 |
|
|
700 |
700 |
1549 |
1150 |
|
|
